Over 70% of new broadband deployments in urban U.S. projects now call for fiber-to-the-home. That fast transition toward full-fiber networks shows the urgent need for high-performance production equipment.
Fiber Cable Sheathing Line
FTTH Cable Production Line
Fiber Secondary Coating Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) delivers automated FTTH cable manufacturing line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines as well as control systems. It turns out drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This modern FTTH cable making machinery offers measurable business value. It enables higher throughput and consistent optical performance with low attenuation. It also meets IEC 60794 and ITU-T G.652D / G.657 standards. Customers gain reduced labor costs and material waste through automation. Full delivery services include installation and operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also includes SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs typically use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model delivers on-site commissioning by experienced engineers, remote monitoring, as well as rapid troubleshooting. This line also provides lifetime technical support and operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Core Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable production process for FTTH demands precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This approach boosts yield and speeds up market entry. It meets the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-output UV curing. Tight buffering together with extrusion systems produce 600–900 µm jackets for indoor together with drop cables.

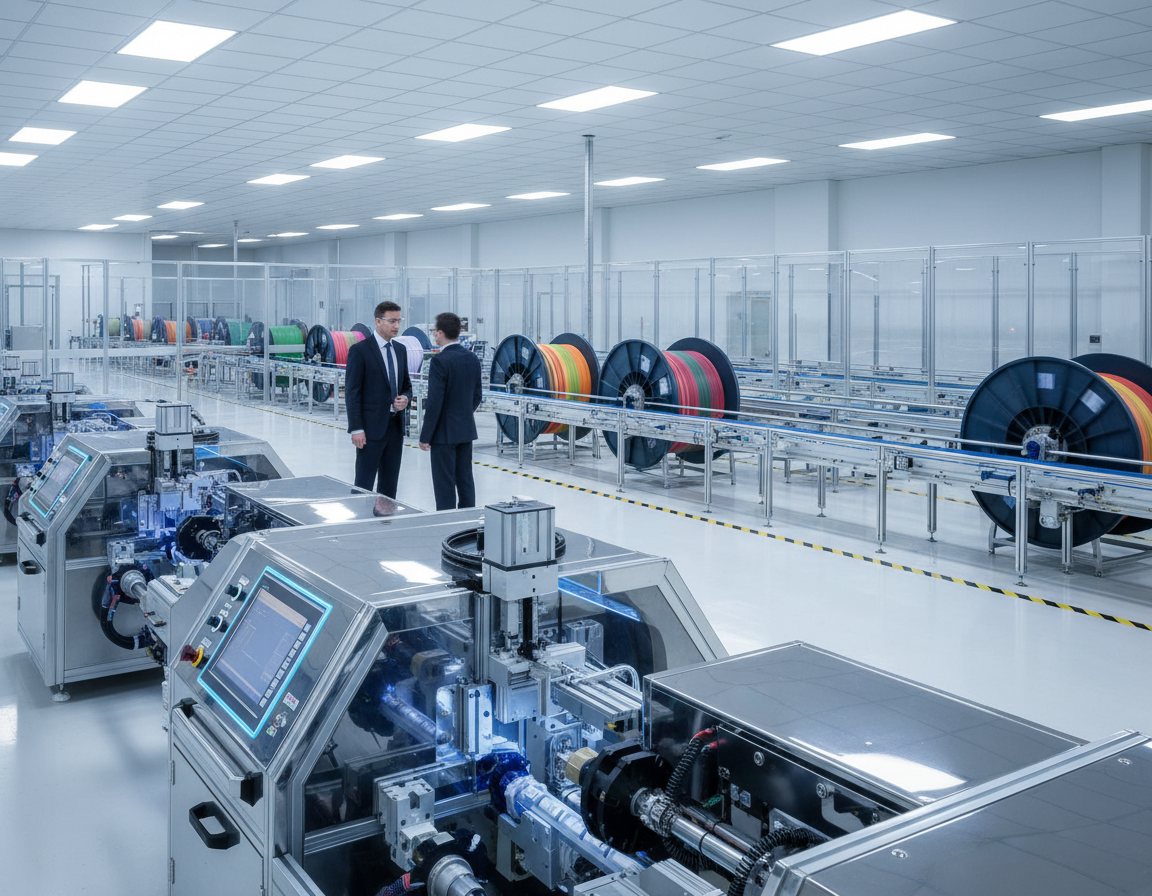

SZ stranding lines use servo-controlled pay-off together with take-up units to handle up to 24 fibers featuring accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities now use PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics together with modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, and armored formats. This shift supports automated fiber optic cable line output as well as lowers labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID as well as precision heaters ensures consistent extrusion consistency.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Unit | Key Benefit |
|---|---|---|
| Fiber drawing | Automated draw tower with tension feedback | Consistent core diameter and low attenuation |
| Coating stage | UV-curing dual-layer coaters | Even 250 µm coating that improves durability |
| Fiber coloring | Multi-channel fiber coloring machine | Precise identification for splicing and installation |
| SZ stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Consistent lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Efficient extruders with multi-zone heaters | PE/PVC/LSZH jackets with tight dimensional control |
| Protection armoring | Armoring units for steel tape or wire | Stronger mechanical protection for outdoor applications |
| Cooling and curing | UV dryers and water troughs | Quicker profile setting with fewer defects |
| Quality testing | Inline geometry and attenuation measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment enables firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-output fiber optic cable production must match material, tension, as well as curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single together with dual layer coating applications meet different market needs. Single-layer setups deliver basic mechanical protection as well as a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance and stripability. This helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens together with water trough cooling stabilize the coating profile together with reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws as well as barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron deliver robust control as well as monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation as well as curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-output fiber optic cable line output.
Fiber Draw Tower And Optical Preform Handling
This fiber draw tower is the core of optical fiber drawing. This line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. This step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback together with tension management. This prevents microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable line output process. Advanced towers log metrics for traceability together with rapid troubleshooting.
Output consistency supports single-mode fibers such as ITU-T G.652D together with bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These services help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Feature | Function | Typical Goal |
|---|---|---|
| Multi-zone heating furnace | Even preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Live diameter control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Managed tension and cooling | Protect fiber strength while preventing microbends | Specified tension per fiber type |
| Automatic pay-off integration | Secure handoff to secondary coating and coloring | Synchronized feed rates for zero-slip transfer |
| On-line test stations | Check attenuation, tensile strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Line Technology In Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness together with boost flexibility. That makes it ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing employ SZ approaches to meet tight bend as well as axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 together with 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
This combination of a robust sz stranding line, high-end precision stranding equipment, together with a synchronized fiber cable sheathing line offers a scalable solution for manufacturers. That blend raises throughput while protecting optical integrity together with mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring as well as identification are critical in fiber optic cable line output. Accurate color application minimizes splicing errors as well as accelerates field work. Current equipment combines fast coloring featuring inline inspection, ensuring high throughput as well as low defect rates.
Today’s high-output coloring technology supports multiple channels as well as quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning using secondary coating lines. UV curing at speeds over 1500 m/min ensures color as well as adhesion stability for both ribbon together with counted fibers.
This next sections review standards as well as coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible featuring common coatings as well as extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. This support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fibers In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This method benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable manufacturing machine must handle pay-off reels sized for reinforcement together with align featuring sheathing tolerances.
Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing supports long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling featuring SZ stranding together with sheathing lines. These solutions include operator training as well as maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable manufacturing modules, ease of changeover, and service support for field upgrades. Those points reduce downtime together with protect investment in an optical fiber cable manufacturing machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Current data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method employs parallel processes together with precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy together with speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, together with shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances as well as material choice. Extrusion as well as buffering create compact fiber unit constructions featuring typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability as well as flame performance.
High-density cable solutions aim to enhance rack together with tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible featuring MPO trunking and high-count backbone systems.
Production controls as well as speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, together with turnkey integration using sheathing together with testing stations support bespoke fast-cycle fiber cable manufacturing line requirements.
| Key Feature | Fiber Ribbon System | Compact Fiber System | Data Center Benefit |
|---|---|---|---|
| Typical operating speed | Up to 800 m/min | Up to 600–800 m/min | More output for large deployment projects |
| Main production steps | Alignment automation, epoxy bonding, and curing | Buffering, extrusion, and precision winding | Stable geometry and reduced insertion loss |
| Material set | Specialty tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Long-term reliability and safety compliance |
| Quality testing | Real-time attenuation and geometry inspection | Precision dimensional control with tension monitoring | Fewer field failures and quicker deployment |
| Integration | Sheathing integration and splice-ready stacking | Modular units for high-density cable solutions | Simplified MPO trunking and backbone construction |
How To Optimize High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 as well as 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D together with G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. This reduces ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. The line further contains sheathing, armoring, together with automated testing for consistent high-output fiber manufacturing. A complete fiber optic cable line output line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, together with maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These integrated packages simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable line output line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs and turnkey proposals, as well as schedule engineer commissioning together with operator training.
