Understanding the intermittent bonded ribbon production line
Equipment for producing rollable formats in optical-fiber manufacturing is provided by Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Buyers can evaluate the capacity of this setup against their intended product range because it is designed for 12- and 16-fiber ribbons. Factory space and installation needs may also be affected by the system’s split-type construction.
Fiber Cable Sheathing Line Fibers In Stainless Steel Tube Compact Fiber Unit
For this specific production line, the specified construction speed is 600 m/min. Fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up are combined in the process. The complete process is important to evaluate, not just the stated speed.
Factory utilities, reel requirements, available floor space, and installation conditions should be assessed before purchase. Request the supplier’s documentation package and verify that the system matches your cable design and operating needs. Early planning for these details can reduce setup delays and make startup smoother.
Main Takeaways
- Intended to produce rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Uses a split-type construction.
- Includes curing, monitoring, pulling, and take-up stages.
- Before purchasing, verify utilities, reels, installation requirements, and supplier documentation.

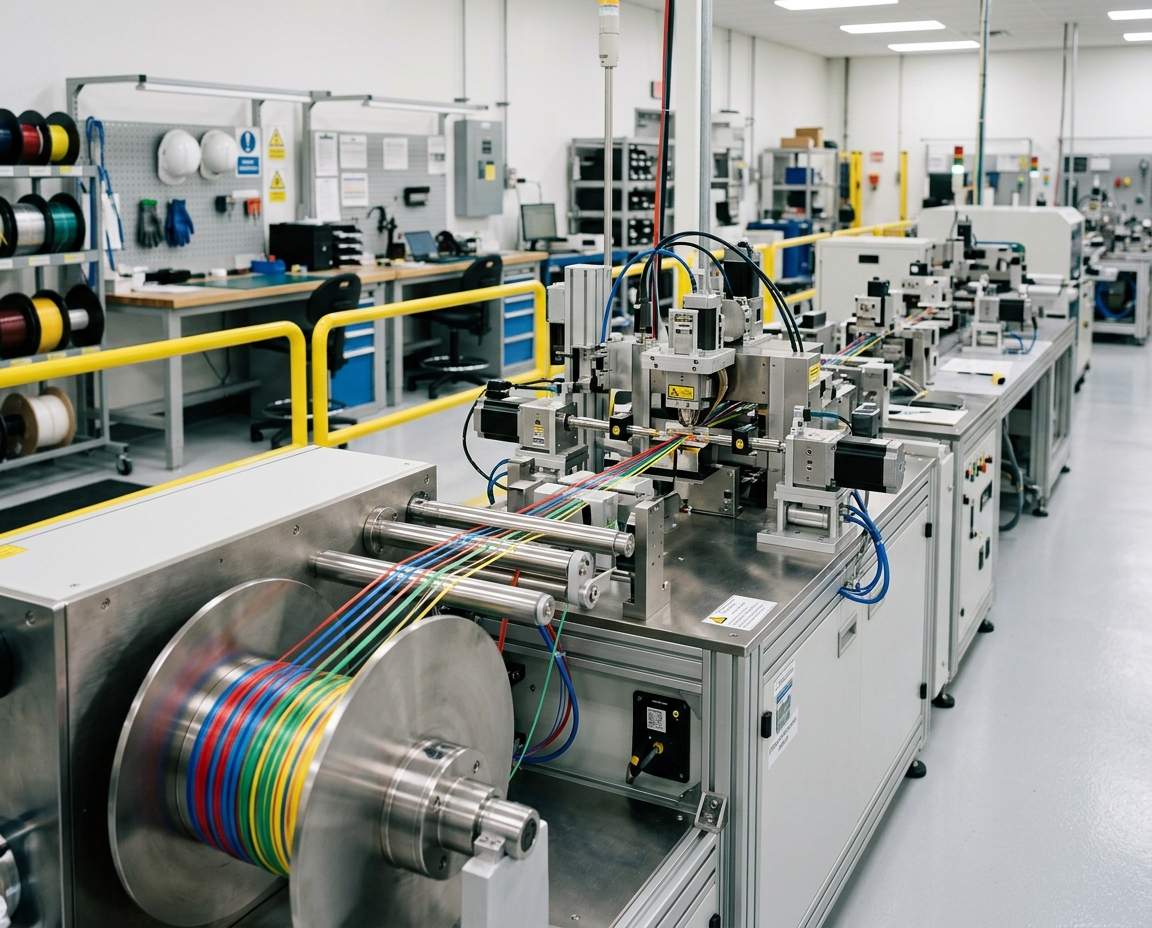

Intermittent Bonded Ribbon Production Line
Explore The Intermittent Bonded Ribbon Production Line
To create rollable IBR formats, three mold groups arrange fibers for the application of small adhesive dots. Operators can adjust the mold position from 0 to 15 mm to maintain consistent spacing and shape.
Make Rollable Fiber Ribbons Using Precision Bonding
The machine is fed by a 16-spool pay-off, and guide rollers with U-shaped grooves help maintain the organization of each strand. Hard-anodized roller surfaces promote steady contact during processing. The adjustable valve arrangement supports 12F and 16F layouts, using 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to confirm tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
The stated construction speed is up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. T-type and fiber-optic take-up reels are also available for this system. Compare reel capacity with your production requirements and expected changeover time.
Review The Production Line’s Key Equipment And Controls
Tension, resin placement, and UV exposure must work together to maintain reliable output. Operators can use the system to align settings with the needs of their cable design and fiber ribbon.
Coordinate Fiber Tension, Resin Dispensing, And UV-LED Curing
Electro-pneumatic adjustment is used for each pay-off unit. Dispensers can operate independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.
Before UV-LED post-curing, three pre-curing ovens serve the mold groups. Verify resin compatibility and operating conditions with the supplier.
The Siemens PLC and touchscreen display lamp current and oven temperature, generate alarms, and support preset lengths. Before purchase, review cabinet requirements and power supply needs.
| Process Stage | Specification | Buyer verification |
| Fiber tension | Pay-off: 0.4 to 2 N, ±0.02 N; capstan: 50 to 500 g, ±5 g accuracy | Align settings with cable requirements |
| Resin dispensing | Independent or linked units; set adhesive-dot spacing and count | Review interface settings |
| UV-LED curing | Three pre-curing ovens rated 800 W each; one post-curing oven rated 6 kW; 395 nm ± 3 nm; at least 85% cure during stable, high-speed operation | Confirm resin compatibility |
| Process monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Check cabinet and power supply |
Plan Installation, Operating Conditions, And Line Configuration
Prepare a designated area before the equipment arrives. An enclosed, clean, dry, draft-free space is needed for the optical fibre system. Maintain temperatures between 15°C and 25°C and humidity at or below 85%. These conditions help safeguard fiber equipment and maintain precision during operation.
With your facilities team, assess site utilities, available electrical capacity, cabinet space, and cable design. Nitrogen at 7 bar with 99.99% purity and compressed air at 6 bar are specified for the system. A three-phase, five-wire electrical supply rated 380 V ±10% is required.
- Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, check the temperature settings and tension control.
- Account for the specified reel size of Φ410 mm × Φ50.8 mm × 391 mm. Reels of up to 30 kg can be handled by the take-up unit.
- Account for the main power feed-in cable when preparing the site. The equipment package excludes connection cables and cable trays.
The supply scope, reel types, and installation needs should be confirmed before placing an order. This assessment can reduce setup time and help prevent later delays. Request supplier confirmation of suitable settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system begin operating more smoothly.
Obtain Pricing For A Ribbon Production Solution Matched To Your Needs
At its stated speed of 600 m/min, this line can be assessed by manufacturers producing rollable 12- or 16-fiber formats. Share details of your fiber layout, output targets, cable requirements, reel preferences, and factory conditions to obtain a quotation.
Check the proposed system for its 16-spool pay-off, UV-LED curing setup, take-up capacity, and included options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. These documents can help assess setup time and ongoing service needs.
Contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. to obtain pricing and configuration details that suit your output plan and site utilities. Before buying, check the scope of supply and replacement parts.
